RTX 2070 Super FTW3 Ultra

Rate this post

amazon RTX 2070 Super FTW3 Ultra reviews

evga geforce rtx 2070 super 8gb ftw3 ultra+ video card is the 3070 better than what equivalent to ultra review gaming overclock settings gddr6 price in egypt plus 3060

Specifications

GPU core: TU104-410-A1

Process: 12nm FFN

Base pulse: 1605 MHz

Boost pulse: 1815 MHz

CUDA core: 2560

Tensor core: 320

Texture Units: 184

ROPs: 64

VRAM: 8GB GDDR6 256-bit, 14 Gbps

VRAM Bandwidth: 448 GB/s

Output ports: 3x DisplayPort, 1x HDMI, 1x VirtualLink USB Type-C

Thickness: 2.75 slots

TDP: 215W

Power requirements: 650W real power or more with 2 8-pin auxiliary power terminals.

Preliminary assessment

When buying this card, the first impression you will feel is the “giant” size of the box. The front has a picture of the card printed on it. The left side has the EVGA logo as well as the VGA line signal logo (here is the FTW3 Ultra line).

When opening the box, we will only have the graphics card with the user manual. The driver disc, and the video converter adapter… are gone. I think removing the driver disc is a pretty good choice. Because now, how many people use driver discs anymore?

Design and heat dissipation

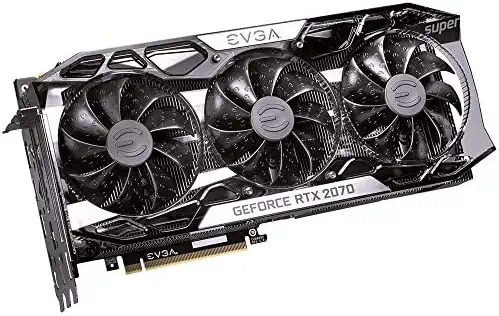

At first glance, the RTX 2070 Super FTW3 Ultra has the same design as other FTW3 cards. The only difference lies in the word “Super” in the upper right corner. Where else, the design of 3 fans with the transparent surface remains the same.

Accompanied by the 3 fans above are 2 clusters of heatsinks that are quite “sticky”. They are connected by 6 copper heat sinks. And of course, this cooling system will support EVGA’s exclusive iCX technology.

Below the main heatsink, we will have a base plate. This base plate works to dissipate heat for the VRM and VRAM of the card.

Of course, with a card this lean, a backplate is indispensable. EVGA has equipped the RTX 2070 Super FTW3 with a pretty solid metal backplate. In addition to increasing rigidity, it also acts as a heat sink for the back of the VRM. Remember, from the GTX 10-series generation, EVGA encountered a board fire on some card models. Therefore, they have learned from experience and are equipped with heatsinks as well.

where can you get a RTX 2070 Super FTW3 Ultra online

EVGA GeForce RTX 2070 Super FTW3 Ultra, Overclocked, 2.75 Slot Extreme Cool Triple + iCX2, 65C Gaming, RGB, Metal Backplate, 8GB GDDR6, 08G-P4-3277-KR: Buy it now

EVGA GeForce RTX 2070 Super FTW3 Ultra, Overclocked, 2.75 Slot Extreme Cool Triple + iCX2, 65C Gaming, RGB, Metal Backplate, 8GB GDDR6, 08G-P4-3277-KR: Buy it now

EVGA GeForce RTX 2070 Super FTW3 Ultra+, Overclocked, 2.75 Slot Extreme Cool Triple + iCX2, 65C Gaming, RGB, Metal Backplate, 15.5GHz 8GB GDDR6, 08G-P4-3377-KR: Buy it now

Motherboard

Overview of the motherboard of the RTX 2070 Super FTW3 Ultra graphics card. EVGA has used a completely custom design, not using a reference board anymore. That’s necessary to ensure “cramming” a lot of terrible components that support overclocking. The core TU104-410-A1 is located in the center of the board.

There are 10 CPU-specific VRM phases. They are controlled by the OnSemi NCP81610 controller.

VRAM will have 2 VRM phases dedicated to it, controlled by a second OnSemi NCP81610 controller.

The VRAM for this card is manufactured by Micron and bears the model number D9WCW. They have speeds of 14 Gbps.

Close-up of the GPU TU104-410-A1 of the RTX 2070 Super FTW3 Ultra. This is the 2nd largest GPU in the Turing family, just behind the TU102. It is manufactured on TSMC’s 12nm FFN process and contains 13.6 billion transistors.

On-board jacks

EVGA has equipped the RTX 2070 Super FTW3 Ultra with up to 2 BIOSes. In it, we have 1 normal BIOS and 1 specialized BIOS for OC. The switch to toggle the BIOS is located right next to the 2 auxiliary power heads.

At the end of the card, we will have a PWM fan case connector. When the fan case is plugged in, it will synchronize the speed with the card’s fan. From there, we will take advantage of the automatic fan curve and fan stop features.

Nearby, we will also have a 4-pin 12V RGB plug. This connector allows the LED wire or any other part with RGB LEDs to be synchronized with the card’s LED.

Starting with the Turing generation, Nvidia dropped the SLI standard. Instead, they will adopt the NVLink standard, which is used on the Quadro line. NVLink provides enough bandwidth for GPU-intensive systems to render 8K 60Hz, 4K 120Hz, and other bandwidth-eating resolutions. With it being a direct connection between the two cards, the latency will be much lower than with SLI.

Output port and auxiliary source

In terms of output, we have a slightly different configuration than on the Founders Edition. Specifically, the DVI port is gone. Instead, we have 3 DisplayPort 1.4a ports, 1 HDMI 2.0b port, and 1 USB Type-C port that supports VirtualLink. More specifically, 3 DisplayPort 1.4a ports will support DSC technology. Accordingly, it will support up to 8K 30Hz when normal and 8K 60Hz when DSC is on.

EVGA has equipped the RTX 2070 Super FTW3 Ultra with two 8-pin auxiliary power connectors. This configuration will help the card to eat up to 375W of power. Therefore, EVGA has advised users to equip at least a 650W CST power supply to be able to run this card. But, I recommend that you get a minimum source of 700-800W or more, to avoid a lack of power leading to damage to the card and other hardware.
