amazon ASUS TUF Gaming Z690 PLUS WIFI D4 reviews
ASUS is one of the leading names in the hardware industry with all kinds of technology products to serve users, but the most “considered” customer group is probably the group gamers.
Although the company has long used the Strix product line to serve this particular customer group, a recent emerging force, the TUF product line with the motto of “durable” is also a very popular gamer community with a strong focus on product durability and performance.
But also by cutting out many cumbersome and unnecessary elements, the TUF series motherboards are cheaper, more practical, and also more attractive in the eyes of power-hungry gamers.
Along with the launch of Intel’s new 12th generation processors and Z690 chipset, the TUF product line also received a brand new motherboard model called ASUS TUF Gaming Z690 PLUS WIFI D4.
Will a TUF series motherboard famous for its simplicity and durability convince gamers?
First, it must be seen that ASUS does not seem to have changed much about the box design of the ASUS TUF Gaming Z690 PLUS WIFI D4 compared to the “elder” ASUS TUF Gaming Z490-Plus (Wi-fi) launched last year.
Still, the familiar black tone with the image and product name occupies most of the space in front of the box, is it possible that the TUF logo has been “stylized” in a new style, which has appeared on the card model? ASUS TUF GAMING RX 6800 XT graphics.
The back of the box is some notable technology information, including USB 3.2 Gen 2×2 technology with up to 20Gbps transmission, active audio noise cancellation, or LAN 2.5 Advanced G.
Inside the box is a package of accessories, which includes a TUF reliability certificate, TUF Gaming sticker, driver CD, user manual, 2xSATA cable, and a Wi-Fi antenna that comes with a magnetic base.

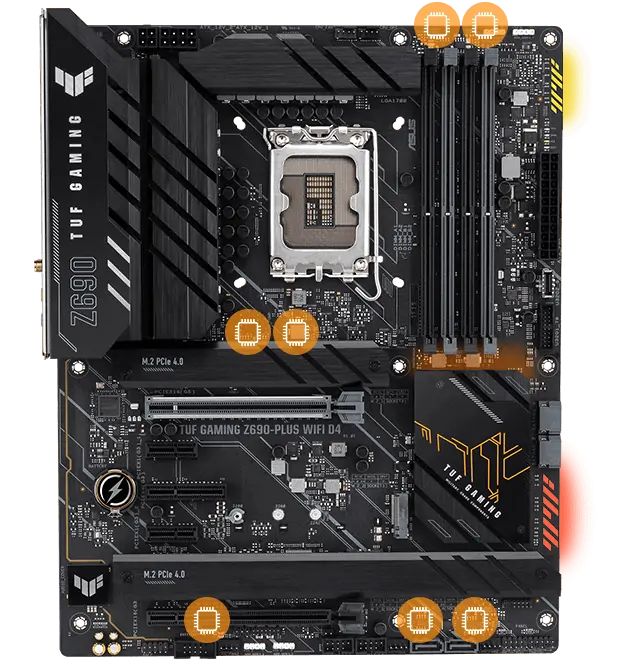

In terms of design, the ASUS TUF Gaming Z690 PLUS WIFI D4 has a very familiar appearance, quite similar to its predecessor in the circuit board layout, but with a modestly reduced chipset heatsink, separate from the heatsinks for the SSD hard drive M.2.
The expansion slots on the ASUS TUF Gaming Z690 PLUS WIFI D4 include one PCIe 5.0 x16 slot, one PCIe 3.0 x16 slot with x4 mode support, and one PCIe 3.0 x4 slot, and two PCIe 3.0 x1 slots.
Supporting the PCIe 5.0 technology standard is a significant step forward, helping Intel to overcome the technology “red team” for the first time after years of hanging around with the PCIe 3.0 standard.
In addition to the M.2 slots located near the chipset heatsink, we’ll find more M.2 slots underneath both the long and short M.2 heatsinks, making a total of four M.2 slots on the ASUS TUF Gaming Z690 PLUS WIFI D4.
These M.2 slots are all equipped with the M.2 Q-Latch swivel lever with the ability to help users connect to SSD hard drives quickly without having to remove and attach micro screws, which are easy to drop like before.
According to the official diagram of the Intel Z690 chipset, the first M.2 slots are connected to the CPU while the other three are connected to the PCH, all of which are capable of supporting up to PCIe 4.0 for demand high-speed storage devices.
The SATA ports still appear on this motherboard model, but instead of arranging them all in one cluster, ASUS decided to divide them into two groups placed in different locations on the motherboard.
As for the power design, ASUS TUF Gaming Z690 PLUS WIFI D4 has 8 pins and 4 pins for 12V EPS with a 14+1 power supply configuration, from which the cooling system for these VRMs has to be expanded in size and on a much larger scale than in previous generations.
Not only upgrading in quantity, but ASUS also upgraded the MOSFETs with a current capacity of 80A each, instead of the 50A MOSFET of its predecessor.
Under the VRM heatsink, we can see power ranges labeled Sic659 on them, which are said to be Vishay’s new MOSFETs.
The power array is rated 80A per unit and ASP2100 PWM controller to provide the power needed for the latest 12th Gen Intel Core Processors.
Not as “colorful” as high-end motherboard product lines that use debug screens, ASUS TUF Gaming Z690 PLUS WIFI D4 is only equipped with a series of debugging LEDs to make troubleshooting easier. This is one of the features that the writer thinks is quite necessary, especially for gamers who upgrade and change their devices over time.
Unlike the higher-end Z690 chipset-based motherboard models that support expensive DDR5 models, the board model only supports DDR4 memory modules with 4 slots, for a maximum capacity of 128GB and frequency up to DDR4-5133 through overclocking to reduce the “initial investment” cost for gamers.
The audio system on this motherboard is a Realtek S1200A audio codec, located below the TUF logo cover and Nichicon audio capacitors commonly found on many motherboards today.
With an SNR ratio of up to 108dB according to official specifications, the sound system of TUF Gaming Z690-PLUS WIFI is more than enough to serve the needs of every gamer.
The most notable point with this year’s TUF series model is that ASUS has “standardized” the motherboard with Wifi 6, allowing users to enjoy high wireless connection speeds of up to 2400MBps with top quality security today.
USB ports include four USB 3.2 Gen1 ports, two USB 3.2 Gen2 ports, one USB 3.2 Gen 1 Type-C and one USB 3.2 Gen2x2 Type-C.
If you are considering assembling a new PC rig without being too concerned with colorful decorative elements, ASUS TUF Gaming Z690 PLUS WIFI D4 is a good choice when it comes to completely satisfy your needs while still helping you to save costs to the maximum extent.
True to its name (TUF is a pun on Tough, meaning tough), ASUS has created a motherboard that can take on the toughest challenges.
