ASUS RX 5700 TUF GAMING X3 8GB

amazon ASUS RX 5700 TUF GAMING X3 8GB reviews

asus tuf 5700 xt review asus radeon rx 5700 xt 8gb tuf gaming x3 oc video card the asus tuf gaming x3 radeon™ rx 5700 xt oc edition 8gb gddr6 asus tuf gaming rx 5700 xt asus tuf gaming x3 rx 5700 xt oc 8gb asus tuf 5700 xt asus tuf gaming 5700 xt asus tuf gaming x3 amd radeon rx 5700 asus tuf 5700 asus tuf gaming x3 radeon rx 5700 xt asus 5700 xt tuf

ASUS RX 5700 TUF Gaming X3 8GB – After the success of the STRIX series for gamers, ASUS has launched a new product line with the rather concise name “TUF”, a way pun on “tough” means to endure.

This is a product line designed and engineered by the company with the motto “durable”, aimed at gamers who are not too interested in colorful patterns, colorful RGB LEDs, or overclocking power at a high level, which pursuit of stable performance, persistence for a long time.

Thanks to that, TUF series products are highly appreciated and welcomed by users, especially with famous graphics processor chips that emit a lot of heat, causing concern for the meticulous user community like the RX 5700 ASUS RX 5700 TUF Gaming X3 8GB version still brings trust and peace of mind to the gaming community.

Since its launch in the market, the TUF series often share a common design language with large heatsinks, relatively small propellers, and a diagonal pattern on the front “mask”, and so on. This is no exception with the ASUS RX 5700 TUF Gaming X3 8GB.

Even if compared to the mid-high-end model from the “green team”, the ASUS GTX 1660 Super TUF Gaming X3 that Biareview introduced to readers, our graphics card model is almost nothing. The difference is how in the packaging design, except that the greenish tone is replaced by the familiar red-orange tones of products from AMD.

However, ASUS has slightly changed the packaging for its graphics card model with a nylon packaging that tightly packs our graphics card model into the box instead of “hanging around” with a nylon case. as usual. Perhaps because this card model is quite heavy, the company has to change its packaging to prevent the product from vibrating and shocked during the process of moving, easily damaging the internal components.

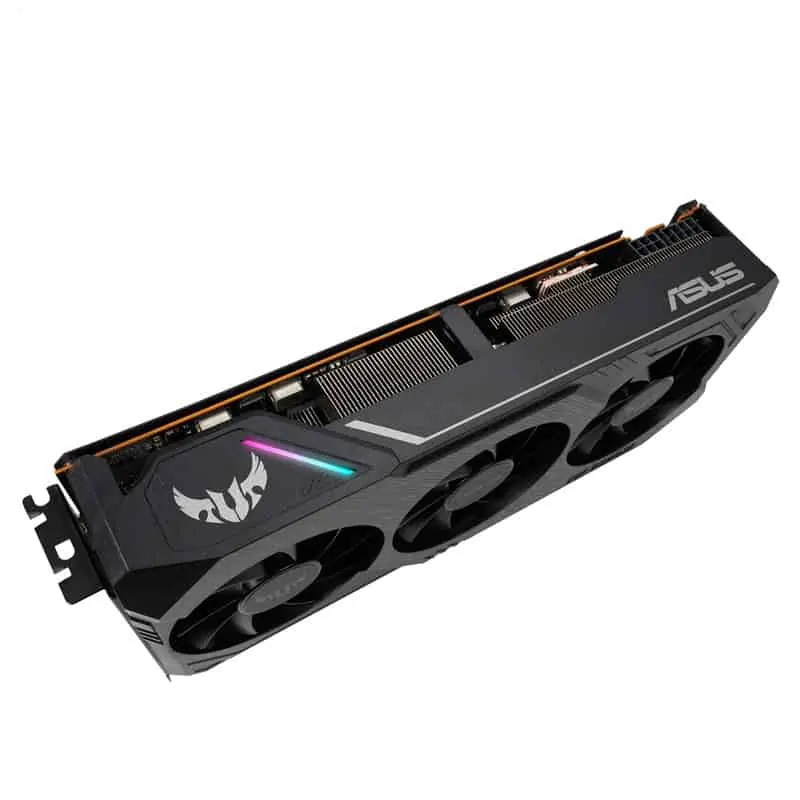

My first impression of the ASUS RX 5700 TUF Gaming X3 8GB is that its size and weight surpasses the previous ASUS GTX 1660 Super TUF Gaming X3 with two fans heat is large and the central fan is a little smaller.

The card body is quite thick with a relatively bulky heatsink that “takes up” most of the length and frontal space of the product with four shiny nickel-plated heat pipes in direct contact with the RX 5700 GPU chip area.

The heatsinks are equilibrated into two main components, cooling the entire VRM powering strip. This is quite an important detail for current Navi series graphics cards because there are many models that do not pay enough attention to this area, causing clock drops and frame drops like on the Sapphire Pulse RX 5500 XT 4G.

The back of the card is also equipped with a rather thick and sturdy “armor” which is beautifully decorated with the same motifs as the front and the engraved TUF logo. This backplate is fastened by a large nut to the top plate support of the board, all forming an extremely sturdy box-like frame that protects the board and its components from scratch. The radiator’s heavyweight is heavy.

The top of the card is the only place where ASUS “decorates” the product with RGB LEDs. From this position, it can be seen that the overall thickness of the ASUS RX 5700 TUF Gaming X3 8GB is quite large, even “covering” the area of the second PCIe slot, which is difficult for users to use the above accessories this slot because the “left” space for the radiator fan is quite small.

Unlike the Strix version that requires an 8 + 8pin power supply configuration with high self-overclocking capabilities, the TUF version requires only 6 + 8pin power supply configuration, but users still need a power supply with high capacity. 600W minimum to be able to operate “smoothly” without power down.

The “large size” radiator on the product works extremely efficiently, when stress-tested with FurMark software, the maximum temperature that the writer obtained is only 78 degrees.

In terms of design, it can be said that ASUS RX 5700 TUF Gaming X3 8GB ensures the “durable” criterion of the TUF product line while providing an effective heat dissipation, sure to satisfy gamers and work professionals who need the power of graphics, want to stick with their video card model for a long time.

where can you get a ASUS RX 5700 TUF GAMING X3 8GB online

Asus TUF Gaming X3 AMD Radeon Rx 5700 Xt Overclocked 8G GDDR6 HDMI DisplayPort Gaming Graphics Card (TUF 3-RX5700XT-O8G-GAMING): Buy it now

ASUS RX 5700 TUF GAMING X3 8GB – STRENGTHENING INCREASED!

Real test configuration:

CPU: Intel Core i7 8700

Mainboard: ASUS Z370 E-Gaming

RAM: 2x Geil Luce 8GB 2666MHz

SSD: Gigabyte 240GB

Embarking on the field test, the ASUS RX 5700 TUF Gaming X3 8GB shows remarkable power in its price range with a negligible difference from the reference AMD RX 5700 using the previous squirrel-cage heatsink.

In the 3DMark FireStrike test, the system achieved 19,739 points while with the same test system, the reference version also reached 19,365 points. The same thing happened with the DirectX12 rendering test, 3DMark Time Spy, with 7,800 points, slightly different from 7,700 points on the reference version only.

If compared with a product using the Gigabyte RX 5600 XT Gaming OC 6G GPU, the new score gap proved to be a bit impressive, reaching 10% in both tests.

However, compared with a “peer” RTX 2060 Super on the Gigabyte RTX 2060 Super Gaming OC 8G graphics card model, the ASUS RX 5700 TUF Gaming X3 8GB just got better in the normal rendering test but failed in the DirectX12 rendering test. While these tests do not clearly show the power of the graphics cards when playing actual games, it also partly reflects their tendency to perform in the game.

When tested with current heavy games, it is surprising that compared to the reference version, ASUS ‘TUF series graphics card lags behind some new games. This problem happened in part because Assasin’s Creed: Odyssey, Gears 5, and Total War: Three Kingdoms all received several updates both on textures and physical mechanisms up to tens of GB compared to the early days, I tested these games, making the game heavier. Another reason will be mentioned later in the article which explains more clearly.

But with more stable games like Shadow of the Tomb Raider or DOOM, our test graphics card proved to be superior or at least on par with the test on the reference version.

It is worth noting that all tests at the highest settings (except Gears 5 at High) at 1080p were high results, enough for gamers to comfortably “enjoy” the game without any other problems even when you raise the resolution to 1440p has become quite popular lately.

In terms of power, the writer is also quite satisfied with the ASUS RX 5700 TUF Gaming X3 8GB, as this model can easily “carry” recent heavy games, even gamers “hard”.

Although it is a well-designed product with high-end power, there are still a few small issues you need to consider ASUS RX 5700 TUF Gaming X3 8GB.

The first problem is that the graphics RAM chips on this product model are not well cooled because they do not contact the heatsink directly, but only rely on the natural amount of wind blowing out by the fans, so if Used for a long time, these VRAM chips heat up quite quickly, and the inevitable consequence is that the speed of RAM will be automatically limited.

This leaves the card speed at its best when first playing (where I scored the system with 3DMark), but then dropped a bit when I started experimenting with real games. When this problem was discovered, the writer initially intended to wait for the machine to cool down and then review, but in the end, keep the old results to ensure the product gives the closest result to the actual operating conditions.

In fact, you can … ignore this problem as it affects the operating conditions of the product quite small, but if you want to maximize the power of your graphics card model, you can “upgrade” add small VRAM heatsinks to reduce operating temperatures for them.


Pamer
