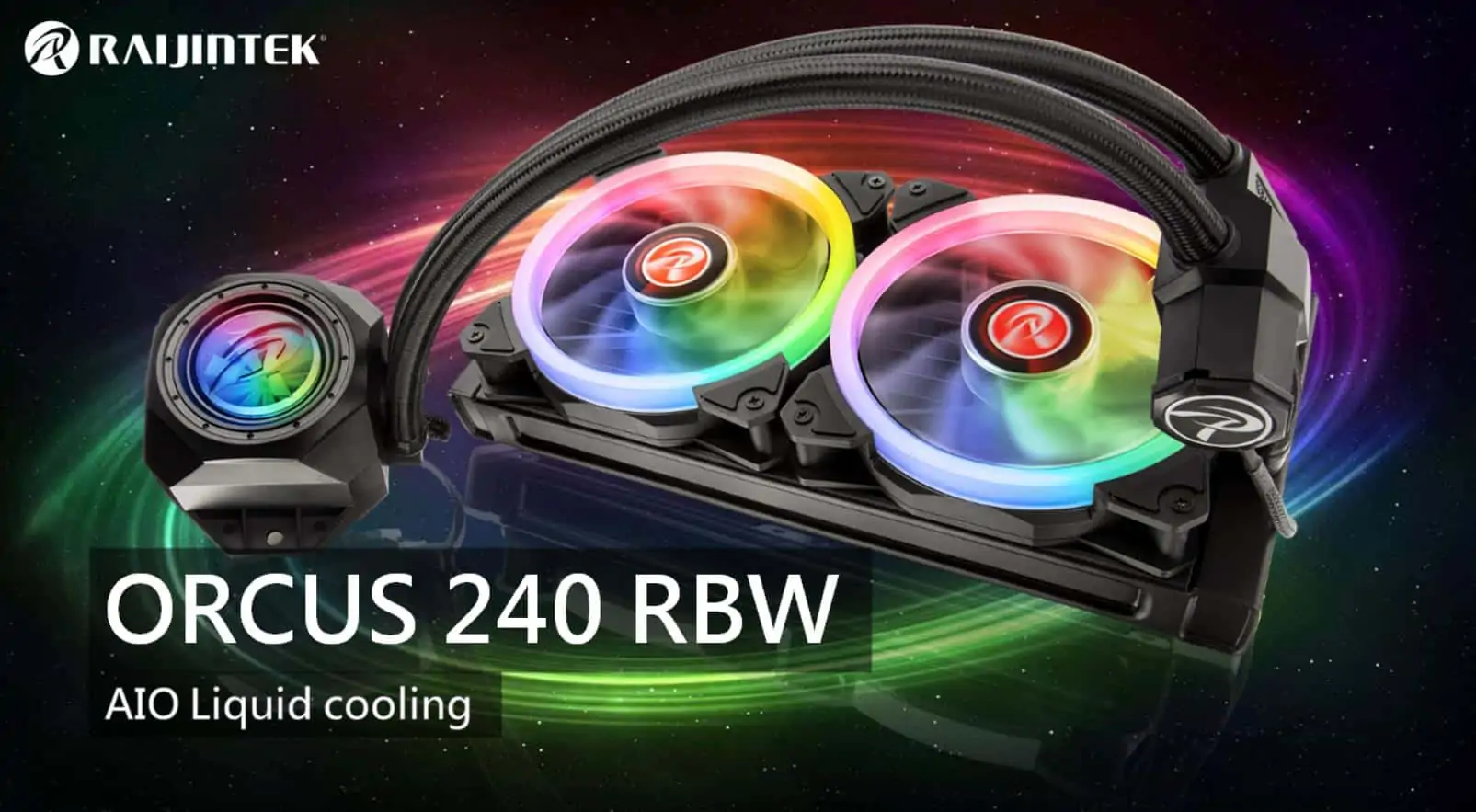

Raijintek Orcus 240 RBW

amazon Raijintek Orcus 240 RBW reviews

Raijintek Orcus 240 RBW: Surely, gamers often want to own a “heavy” PC with a “custom” water cooling system. The expensiveness of the systems This, as well as the difficulties in installation, make many people “hesitant to spending.”

All in One (AIO) water cooling systems were made to solve problems and have become a new trend when giving users the ability to effectively heat dissipation products water while still being very easy to install even for novices.

In the context of the AIO water cooling market starting to enter the ruts, Raijintek has launched the Raijintek Orcus 240 RBW product with a rather strange design than the rest of the world promise bringing a new life to the vibrant AIO cooling market.

Raijintek “boxed” the Raijintek Orcus 240 RBW in a rather thick paper box with white tones and product images. Inside is a shockproof cardboard box.

Inside is a radiator, two standard RBG PWM fans of the company, a set of screws and bases, and finally, a bottle of cooling solution that allows users to “fill” more when needed.

That detail makes it difficult for the writer to understand because the inside of the radiator has been filled with a cooling solution (Coolant) and will not be lost during operation. Perhaps this is a “add value” element specifically for modders who want the color of the coolant to “show off” through the transparent window on the radiator block.

At first glance, the product’s design is almost “twin” with another representative from Taiwan, Enermax LiqFusion 240. But Raijintek’s product possesses more outstanding features such as controlling RGB color lights with remote control or sync directly with newer motherboards instead of “find” on the built-in command.

Raijintek Orcus 240 RBW has a quite different mount design with the clamps of two versions of its radiator, Raijintek Leto PRO RGB and Raijintek MYA RBW, that Biareview has had the opportunity to introduce to readers recently.

Although still using a mechanism that uses many screws, the assembly is much simpler, even for ordinary users. The main wires on the system are covered with braided fabric, which is quite thick to prevent cutting and folding – breaking, including the pump wire, so in general, the product’s design shows the manufacturer’s care.

The small minus point and the only point of attention when assembling the Raijintek Orcus 240 RBW are in the radiator. Behind this radiator, there are screw holes with quite thin rims, which are easy to damage, slip threads if the user tightens the screws strongly.

In today’s market, AIO water cooling systems have entered the “trail” of a common formula from small, poorly-known brands to well-known large brands that have long been no exception. This system is quite simple, consisting of only a heatsink block with an integrated pump connected to the radiator and the accompanying “colorful” fans to blow the heat from the radiator to the outside of the case.

That makes AIO water-cooling products not much different in features, maybe just a little bit in terms of the exterior design and the “colorful” degree of the fan. Some well-known brands have tried to find their way, including NZXT with the AIO NZXT Kraken M22 radiator line that Biareview has introduced to readers before integrating the pump right inside the radiator. Swiftech with the Swiftech Drive X3 AIOS product line with an integrated pump and reservoir behind the radiator. Particularly for manufacturers from Taiwan, such as Raijintek, the company has put the pump design blocking the position of the water pipe on the Raijintek Orcus 240 RBW.

The design of the pump separate from the heatsink block brings a lot of advantages, such as reducing the vibration of components on the motherboard, reducing the heat generated by the pump in the CPU area. Especially when pumping must operate at a high capacity to meet the cooling needs, and more importantly, when separating the pump from the block, it is easy to arrange the “ultra-thin” union with the “penetrating” design as on the other models’ water cooling. One of the factors that are considered the most “sexy” when using water cooling systems.

where can you get a Raijintek Orcus 240 RBW online

RAIJINTEK 0R10B00098 Raijintek Orcus RGB Rainbow Komplett-Wasserkühlung 240 mm: Buy it now

In return, separating the pump from the block requires the manufacturer to design its pump instead of taking advantage of available third-party components, thereby increasing manufacturing costs and product selling prices.

When the device starts to “light up,” the efficiency of heat dissipation is the factor that users care. With a size as large as 240mm and two high-speed cooling fans, the Raijintek Orcus 240 RBW shows impressive, efficient performance while remaining extremely quiet in all three tests representing typical operating conditions most common on PC.

In idle mode, Raijintek Orcus 240 RBW operates quite leisurely with the speed of both the main fan and the auxiliary fan only about 612rpm and a temperature of 41 degrees Celsius; there is no obvious difference between the two. Other reference heatsinks are Raijintek MYA RBW and NZXT Kraken M22.

Meanwhile, when entering the “game arena,” the temperature was pushed to 69 degrees Celsius at 1085rpm main fan rpm, much higher than the 51 degrees Celsius of the opponent from NZXT. But when compared to the high-end version of the radiator of the same company, this limited heat level is equivalent. That shows that this is a feature programmed by Raijintek to prioritize the smooth operation of the cooling system.

When testing the Raijintek Orcus 240 RBW with a 100% stress-tested system using the Prime95 program on all cores within 20 minutes, it can be seen that the temperature variation is quite different compared to other heatsink products. First, the temperature quickly “jumped up” to 85 degrees Celsius before the main fan began to accelerate and stabilize at 1100rpm, pulling the CPU temperature down to 73 degrees Celsius.

Next, the auxiliary cooling fan also starts to “speed up.” At the same time, the main radiator fan slows down until both operate at approximately 912rpm. The CPU temperature is stable at 65 degrees Celsius low rpm speed below 1000rpm; the product works extremely smoothly compared to the slight buzzing of the radiator fan on the Raijintek MYA RBW, which must operate at over 1400rpm in the stress test.

The Raijintek Orcus 240 RBW has a few unnecessary “weak points” that reduce the user’s experience more or less. The first problem you encounter is that the accompanying manual is too sketchy, only installing the mount and does not mention the fan, pump, and other wires, including “lights” and the plugin.

The writer himself has also mistakenly plugged these connections to cause enough problems for the operation of the whole system, such as the wrong plugging of fan and pump wires, causing the CPU temperature when playing games to skyrocket. Ninety degrees, but the fan is still running at approximately 400rpm, or connecting the wrong light wire to the RGB port instead of the ADD HEADER port makes the system unbootable. Raijintek already has a video clip showing how to install the Raijintek Orcus 240 RBW on its product page, so if you want to save time groping, you should watch this clip before starting to assemble.

Another minus point is that the thermal paste with Raijintek Orcus 240 RBW has a high viscosity and low fluidity. So if users use the traditional “top-down” overflow method to use thermal paste, the cream will to much accumulation in the middle and completely reduce the CPU’s ability to cool down.

That’s why you have to “work hard” to use the included “plastic shovel” to spread the entire cream around. However, according to user reviews, the quality of this cream is not good for long-term use. Therefore, users should replace it with some other well-known thermal paste to ensure the quality of the heatsink’s performance.
